Slot-Type Optocoupler / Photo Interruptor

Slot-Type Optocouplers (a.k.a. Photo Interruptor) work by housing an LED and light sensor pair inside the U-shaped bracket.  The sensor detects anything that breaks the beam of light passing through the U-shaped bracket (hence the name Photo Interruptor).

These Optocouplers / Photo Interruptors are often used for:

• Object detection - such as end stops (e.g. 3D printers), door closure detectors (if magnets are unsuitable for the application).
• Speed measurement - using optical encoders (a disk with slits - sold separately).

We stock the following variants:

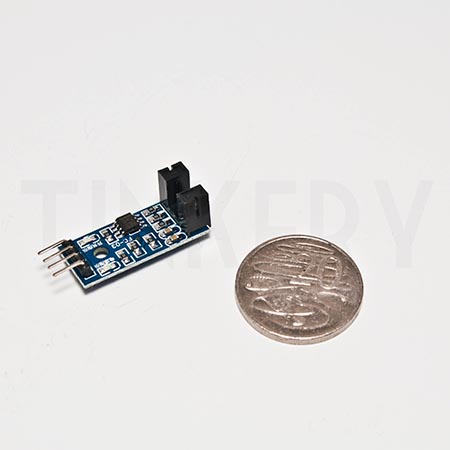

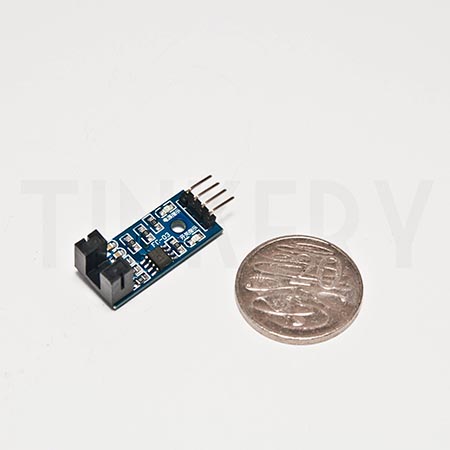

• 4-Pin Module -  Digital and Analog Output.
• 3-Pin Module (Digital Only) - This model is used for the optical end-stop on Prusa and RepRap 3D printers.  It uses a Vishay TCST2103.
• VISHAY TCST2103 - standalone component - for use on breadboards.
